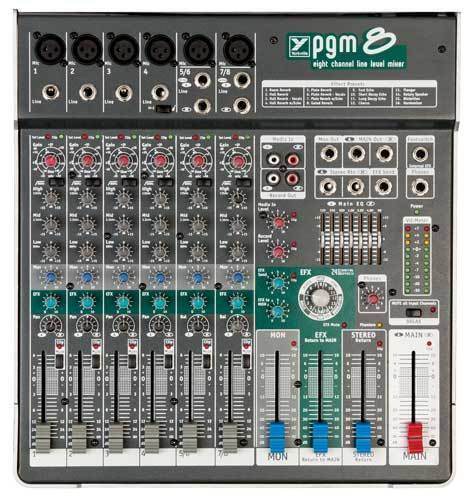

Yorkville 8-Channel PGM8 Analog Mixer

The Yorkville PGM8 delivers all of the essential features needed in a professional mixer in a convenient, ultra-compact package. High quality 60mm faders throughout, effective fully featured input channel design, 24-bit digital effects, and break switch make the PGM8 the perfect mixer for live music applications and for small installs.

Features:

? Four Mono Input Channels with XLR & -inch TRS inputs

? Channel 4 Mono Input has a Hi-Z input switch

? Two Additional stereo line input channels (5/6 and 7/8)

? Additional XLR mono input per stereo channel for maximum 6 Mic inputs

? Input gain level control with Non-defeatable soft multi-slope compressor on every input

? 3-band EQ, High Pass Filter, Monitor send , Effect Send, Clip LED, Mute Switch and Pan control per Channel

? 60mm Faders Throughout

? Global 48 volt Phantom Power

? 7-band stereo graphic EQ on Main Outs

? Stereo RCA Record Outputs with Level Control

? BREAK Switch (mutes all input channels)

? Stereo RCA Media Input Jacks with Rotary Level Control (returns pre equalizer, post BREAK switch).

? Monitor TRS Output

? Main stereo TRS phone and XLR outputs

? Sixteen 24bit digital audio effects

? Effects TRS output jack

? Effects defeat footswitch jack

? Effects return to Main and Monitor

? Stereo Return TRS jacks with fader

? Headphone Level Control

? Stereo Headphone Output Jack (Signal strong enough to drive 8-ohm speakers)

? Dual 10-segment LED Output Meter

? IEC removable line cord receptacle (No Adaptors)

? Universal Power Supply from 90VAC to 264VAC at either 50Hz or 60Hz.

Specifications

? Number of Channels - 8

? Mono Channel EQ - 3-band

? Pan/Balance Controls - 4/2

? Channel Overload Protection - Yes

? Inputs - XLR (bal)6, 1/4" 6. RCA 1 stereo pair

? Phantom Power - 48 volt + LED indicator

? VU Meters - 2 x 10 Segment LEDs

? Headphone Monitor Features - yes

? Internal Effects - 24 bit stereo 16 effects

? Effects Sends - 2 (1 internal, 1 external)

? Effects Returns - Main and Monitor

? Reverb / Effects Footswitch - yes

? Record Outputs - 1 stereo pair

? Signal to Noise Ratio (dB) - Greater Than -100dB

? Frequency Response (all EQ Flat,+/-2dB)- 20Hz-20KHz

? THD (Main out w/ -10dB input)- Less Than 0.05%

? Typical crosstalk -1 kHz (dB) - Greater Than -60dB

? CMRR @ 60Hz (min/typ) - 55dB/65dB

? Power Consumption (typ/max) - 26VA (typical)

? Chassis Construction - Steel

? Dimensions (DWH, inches)- 14.2 x 12.8 x 2.8

? Dimensions (DWH, cm) - 36 x 32.5 x 7

? Weight (lbs/kg) - 8.5/3.8

Replacement Value: $449.00
